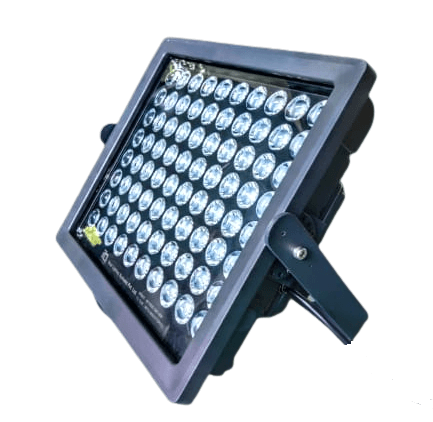

SMD Search Light IWF71
Weatherproof Search Light
BIS approved
Weatherproof Search Light is avaiable in 200W with Clear optics with 78% efficiency to redirect the light uniformly across area. ILS search light range has options in CCT, beam angle and dimming and made of in-house pressure die-casted aluminium housing which ensure excellent performance and reliability along with good service life.
Wattage : 200W,
CCT : 5700K, 4000K, 3000K,
CRI : >70
Beam Angle : 3º ~ 5º ,
Input Supply : 90 ~ 305V AC, 50/60Hz, surge 6Kv CM
Ta : -10ºC ~ 45ºC search
SMD Search Light IWF71 Features
- Excellent CRI for actual colour reproduction.
- Energy saving efficiency and low heat produce.
- AL die-cast housing for excellent heat management.
- Quick installation, special design.
- Highly reliable professional design..
Applications
- Factory Boundry,
- Border Security
- Brand Logo Highlight,
- Focus Light,
- Search Light, Security Light
Characteristics
Optics
- Polycarbonate Lens
- with toughpned glass
- High transmission 85%
- Non-Removable
Thermal Interface Material
- High thermal conductivity
- Excellent heat transfer
LED Driver
- Rated Supply: 240V AC, 50/60Hz
- PF > 0.95, THD <10%
- Short circuit, open circuit,
Heatsink
- Aluminium PDC – Powder Coated
- Excellent heat transfer
Standards Compliance
- IS 10322
- IS 15885 ( Part 2/ Sec13)
- EN 61000-3-2, Harmonics current,
- EN 61000-3-3, Voltage Fluctutaions, Flicker
- EN 61000-4-5, Surge Immunity
- EN 61547, EMC
Weight & Cable entry
- Weight – 9.0 Kg.
- Cable – 3 Core, 250mm
- Mounting – Eye Boltt
- Easy Installation.
Rear view
Side view
