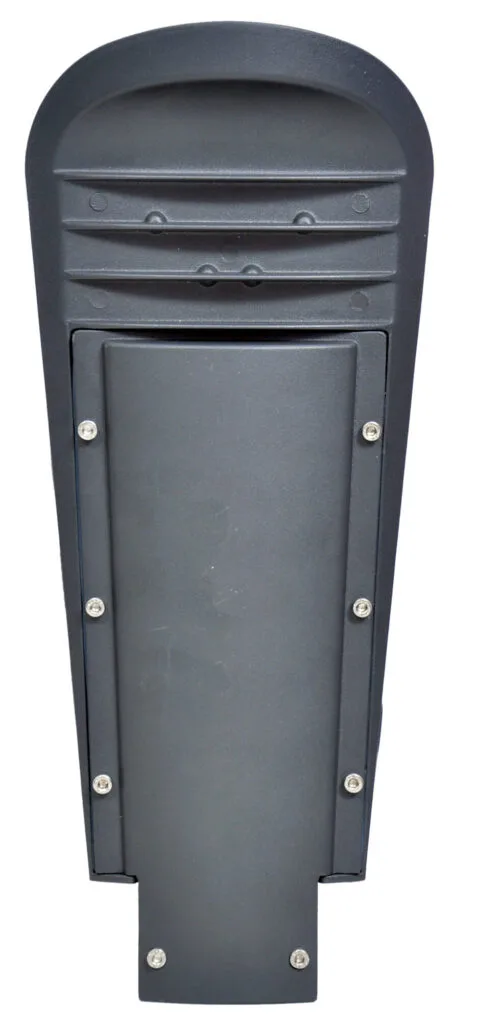

SMD Street Light IWS60 Series
SMD LED Street Light
BIS approved
Weatherproof SMD LED Street Light is avaiable in 30W ~ 45W with Clear optics with 91% efficiency to redirect the light uniformly across area. ILS SMD LED street light range has options for CCT, beam angle and dimming and made of in-house pressure die-casted aluminium housing which ensure excellent performance and reliability along with good service life.
Wattage : 30W, 40W, 45W
CCT : 5700K, 4000K, 3000K,
CRI : >70
Beam Angle : 140ºx 60º, Assymetric,
Input Supply : 110 ~ 320V AC, 50/60Hz, surge 4Kv
Ta : -10ºC ~ 45ºC
SMD Street Light IWS60 Features
- Soft and comfortable light to relieve the fatigue of eyes.
- Excellent CRI for actual colour reproduction.
- Energy saving efficiency and low heat produce.
- AL die-cast housing for excellent heat management.
- 440V Protection for 2 Hrs. with thermal foldback
- Quick installation, special design.
- Highly reliable professional design..
Applications
- Manufacturing Unit,
- Ware-house
- Airport Baggage Area,
- Parking Lot,
- Shopping Mall
- Indoor Parking Lots
Characteristics
Optics
- Polycarbonate Lens
- High transmission 91%
- Non-Removable
Thermal Interface Material
- High thermal conductivity
- Excellent heat transfer
LED Driver
- Rated Supply: 240V AC, 50/60Hz
- PF > 0.95, THD <10%
- Short circuit, open circuit,
- O/V, U/V protection
Heatsink
- Aluminium PDC – Powder Coated
- Excellent heat transfer
Standards Compliance
- IS 10322
- IS 15885 ( Part 2/ Sec13)
- EN 61000-3-2, Harmonics current,
- EN 61000-3-3, Voltage Fluctutaions, Flicker
- EN 61000-4-5, Surge Immunity
- EN 61547, EMC
Weight & Cable entry
- Weight – 1.0 Kg.
- Cable – 3 Core, 250mm
- Mounting – Pipe – 40mm OD
- Easy Installation.
Dimensions (mm)
