IFL10 Series, 15W
Ex d IIC T6
IIC, PESO & ISI approved
IP66, IK07, Class 1
Flameproof Hand Lamp - 230V AC
Flameproof LED hand lamp 15W comes toughpned glass with 85% transmittance and many CCT options. Maintenance free operation for years. ILS hand lamp is made of in-house die-casted case and heat sink. This provides excellent performance and reliability as well as good service life.
Wattage : 15W
CCT : 6500K / 5000K / 3000K
CRI : >70
Beam Angle : Diffused – >160º
Input Supply : 140 ~ 270V AC, 50/60Hz, Surge >4KV
Ta : -10ºC ~ 45ºC
- Fire & Ignition proof.
- Soft and comfortable light to relieve the fatigue of eyes.
- Excellent CRI for actual colour reproduction.
- Energy saving efficiency and low heat produce.
- AL die-cast housing for excellent heat management.
- Quick installation, special design,
- Highly reliable professional design.
- Pharma Industry, Paint Industry,
- Fertilizer Industry, Oil & Gas Industry,
- LPG Bottling Industry, Chemical Industry,
- Steel Industry, Cement Industry,
- Refineries & Petrochemicals
- Toughpned Glass
- High transmission 85%
- Rated supply : 230V AC, 50/60 Hz.
- PF > 0.95, THD <10%
- Short / Open circuit protection,
- U/V, O/V protection.
- Silicon based TIM
- Very high conductivity
- IS 15885 ( Part 2/Sec 13)
- EN 61000-3-2, Harmonics Current
- EN 61000-3-3, Voltage Fluctuations, Flicker
- EN 61000-4-5, Surge Immunity
- EN 61547, EMC
- Pendent – C-Clamp ( Default ).
- Pendent Eye – Clamp ( Optional ).

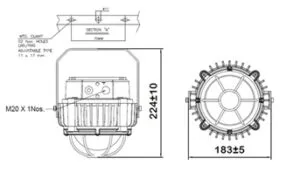

Weight & Cable entry
- Weight – 3.2 Kg.
- Cable entry – M20, 2 Nos
- Easy Installation.
