IP65, Class 1

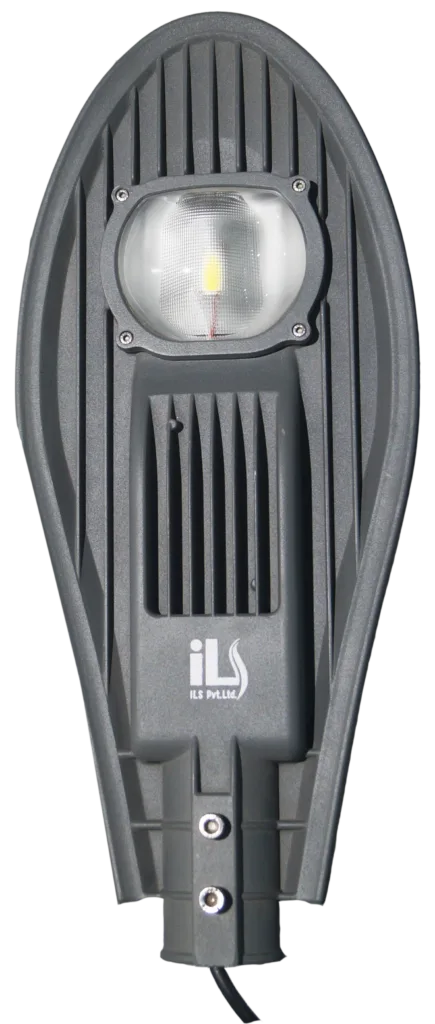

IWS12 SeriesCOB LED Street Light
Weatherproof COB LED Street Light is avaiable in 80W ~ 120W with borosilicate glass lens optics with 93% efficiency to redirect the light uniformly across area. ILS COB LED street light range has options for CCT, beam angle and dimming and made of in-house pressure die-casted aluminium housing which ensure excellent performance and reliability along with good service life.
Wattage : 80W, 90W, 100W, 120W
CCT : 6500K, 4000K, 3000K,
CRI : >70
Beam Angle : 120ºx 60º, Assymetric,
Input Supply : 140 ~ 270V AC, 50/60Hz, surge 4Kv
Ta : -10ºC ~ 45ºC
- Soft and comfortable light to relieve the fatigue of eyes.
- Excellent CRI for actual colour reproduction.
- Energy saving efficiency and low heat produce.
- AL die-cast housing for excellent heat management.
- 440V Protection for 2 Hrs. with thermal foldback
- Quick installation, special design.
- Highly reliable professional design..
- Manufacturing Unit,
- Airport Baggage Area,
- Parking Lot,
- Shopping Mall
- Indoor Parking Lots
- Borosilicate glass Lens
- High transmission 93%
Thermal Interface Material
- High thermal conductivity
- Excellent heat transfer
- Rated Supply: 240V AC, 50/60Hz
- PF > 0.95, THD <10%
- Short circuit, open circuit,
- O/V, U/V protection
- Aluminium PDC – Powder Coated
- Excellent heat transfer
- IS 10322
- IS 15885 ( Part 2/ Sec13)
- EN 61000-3-2, Harmonics current,
- EN 61000-3-3, Voltage Fluctutaions, Flicker
- EN 61000-4-5, Surge Immunity
- EN 61547, EMC
Weight & Cable entry
- Weight – 3.0 Kg.
- Cable – 3 Core, 250mm
- Mounting – Pipe – 60mm OD
- Easy Installation.
Dimensions ( mm)
