IFC40 Series    30W, 45W, 60W, 70W

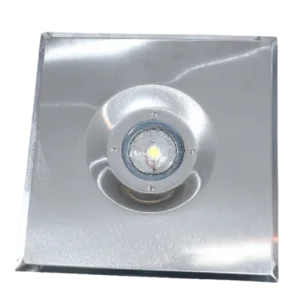

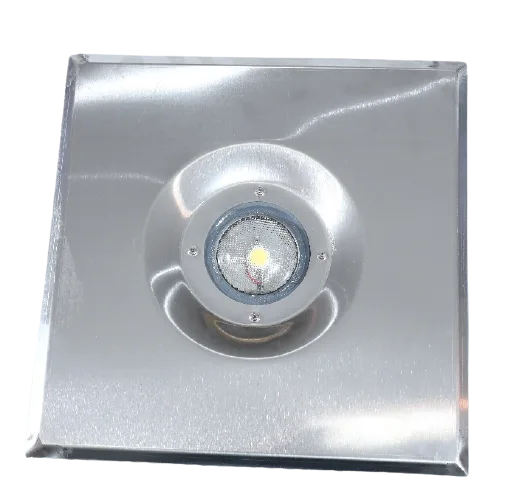

Flameproof canopy / cleanroom Light IFC40

Ex d  IIC  T6

IIC, PESO & ISI approved

IP66, IK07, Class 1

Flameproof Canopy / Cleanroom Light

Flameproof LED Canopy / Clean Room lights exclusively range between 30 to 70 watts. They come with SS frame and borosilicate lens with 93% transmittance and many CCT options to offer maintenance free operation for years. ILS Flood Lights are  made of in-house die-casted case and heat sink. This provides excellent performance and reliability to provide good service.

Wattage           : 30W / 45W / 60W / 70W

CCT                    : 6500K / 5000K / 3000K

CRI                      : >70

Beam Angle    : 60º / 90º / 120º

Input Supply   : 90 ~ 305V AC, 50/60Hz,  Surge >4KV

Ta                          : -10ºC ~ 50ºC

Features

  • Fire & Ignition proof.
  • Soft and comfortable light to relieve the fatigue of eyes.
  • Excellent CRI for actual colour reproduction.
  • Energy saving efficiency and low heat produce.
  •  AL die-cast housing for excellent heat management.
  • Quick installation, special design,
  • Highly reliable professional design.

Applications

  • Pharma Industry, Paint Industry,
  • Fertilizer Industry, Oil & Gas Industry,
  • LPG Bottling Industry, Chemical Industry,
  • Steel Industry, Cement Industry,
  • Refineries & Petrochemicals

Characteristics

Optics

  • Borosilicate Glass Lens
  • High transmission 93%
  • Non-Removable


LED Driver

  • Rated supply : 240V AC, 50/60 Hz.
  • PF > 0.95, THD <10%
  • Short / Open circuit protection,
  • U/V, O/V protection.

Thermal management

  • Silicon based TIM
  • Very high conductivity

Standards Compliance

  • IS 15885 ( Part 2/Sec 13)
  • EN 61000-3-2, Harmonics Current
  • EN 61000-3-3, Voltage Fluctuations, Flicker
  • EN 61000-4-5, Surge Immunity
  • EN 61547, EMC

Mounting

  • Pendent – Eye Bolt ( Default ).
  • Pendent C – Clamp ( Optional ).


Weight & Cable entry

  • Weight – 5.0 Kg.
  • Cable entry – M20,  2 Nos
  • Easy Installation.

Option 1

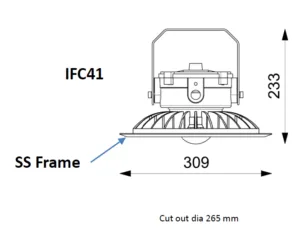

Flameproof Canopy / Clean room Light IFC41

Flameproof Canopy / Cleanroom IFC41

Option 2

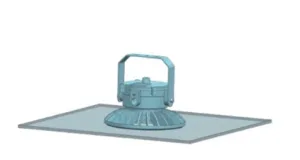

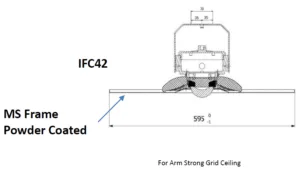

Flameproof Canopy / Cleanroom Light IFC42

Flameproof Canopy / Cleanroom IFC41

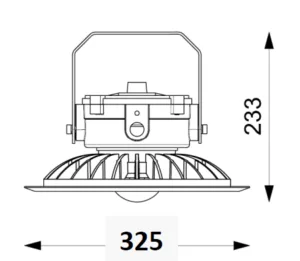

Dimensions ( mm )

Dimensions IFC40
