Flameproof High Mast IWF70

BIS approved

IP65,  Class 1

IWF70 Series

Weatherproof High Mast Light
BIS approved

Weatherproof High Mast Light is avaiable in 300W ~ 400W with Clear optics with 85% efficiency to redirect the light uniformly across area. ILS high bay range has options in CCT, beam angle and dimming and  made of in-house pressure die-casted aluminium housing which ensure excellent performance and reliability along with good service life.

Wattage          : 300W, 350W, 400W

CCT                  : 6500K, 4000K, 3000K,

CRI                    : >70

Beam Angle  : 30º, 40º,60º, 90º, 120º,

Input Supply :  90 ~ 305V AC, 50/60Hz, surge 6Kv CM

Ta                        : -10ºC ~ 45ºC

Features

  • Soft and comfortable light to relieve the fatigue of eyes.
  • Excellent CRI for actual colour reproduction.
  • Energy saving efficiency and low heat produce.
  • AL die-cast housing for excellent heat management.
  • 440V Protection for 2 Hrs. with thermal foldback
  • Quick installation, special design.
  • Highly reliable professional design..

Applications

  • Manufacturing Unit,
  • Ware-house
  • Airport Baggage Area,
  • Parking Lot,
  • Shopping Mall
  • Indoor Parking Lots

Characteristics

Optics

  • Polycarbonate Lens
  • with toughpned glass
  • High transmission 85%
  • Non-Removable

Thermal Interface Material

  • High thermal conductivity
  • Excellent heat transfer

LED Driver

  • Rated Supply: 240V AC, 50/60Hz
  • PF > 0.95, THD <10%
  • Short circuit, open circuit,
  • O/V, U/V protection

Heatsink

  • Aluminium PDC – Powder Coated
  • Excellent heat transfer

Standards Compliance

  • IS 10322
  • IS 15885 ( Part 2/ Sec13)
  • EN 61000-3-2, Harmonics current,
  • EN 61000-3-3, Voltage Fluctutaions, Flicker
  • EN 61000-4-5, Surge Immunity
  • EN 61547, EMC

Weight & Cable entry

  • Weight – 9.0 Kg.
  • Cable  – 3 Core, 250mm
  • Mounting – Eye Boltt
  • Easy Installation.

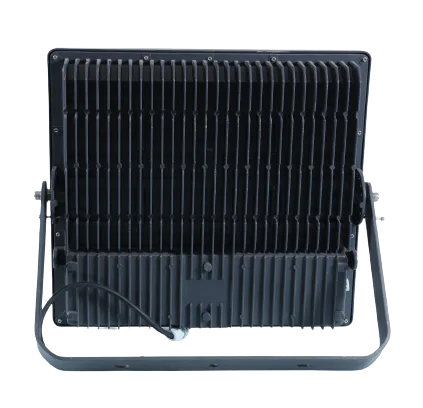

Rear view

Weatherproof High Mast IWF70

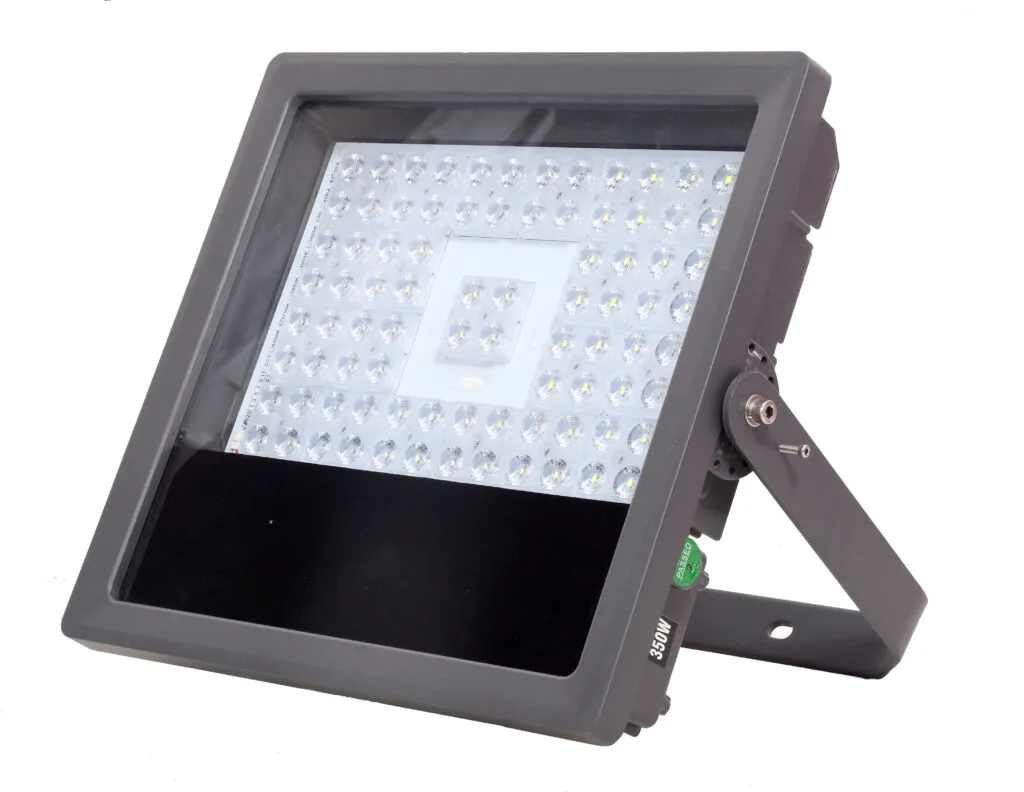

Side view

Weatherproof High Mast IWF70
