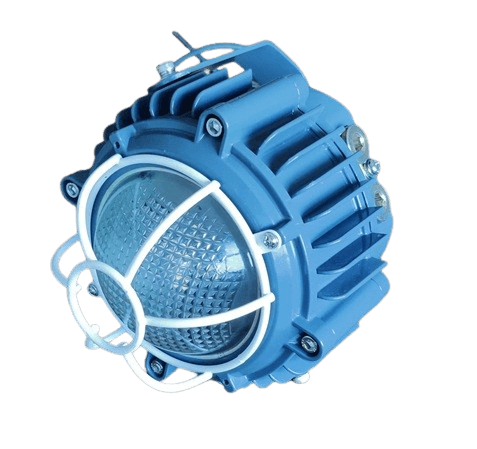

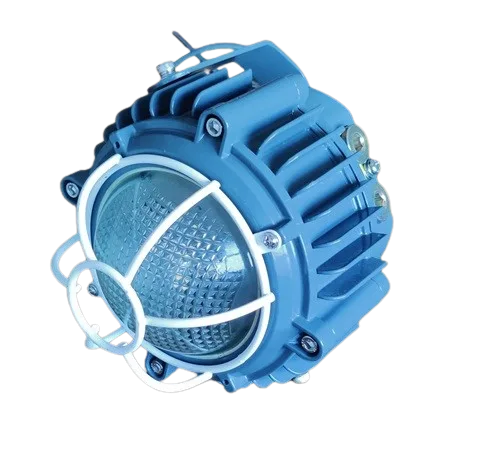

IFW60 Series
Flameproof Well Glass Luminaires - Small Size
Traditional flameproof well glass light ranging from 20W to 30W with internal opal diffuser 360º uniform light distribution.
Wattage : 20W / 30W
CCT : 6500K / 5000K / 3000K
CRI : >70
Beam Angle : Diffused – > 160º
Input Supply : 90 ~ 305V AC, 50/60Hz, Surge >4KV
Ta : -10ºC ~ 50ºC
Features
- Fire & Ignition proof.
- Soft and comfortable light to relieve the fatigue of eyes.
- Excellent CRI for actual colour reproduction.
- Energy saving efficiency and low heat produce.
- AL die-cast housing for excellent heat management.
- Quick installation, special design,
- Highly reliable professional design.
Applications
- Chemical Industry, Paint Industry,
- Fertilizer Industry, Oil & Gas Industry,
- LPG Bottling Industry, Pharma Industry,
- Steel Industry, Cement Industry,
- Open cast mines,
- Refineries & Petrochemicals
Characteristics
Optics
- Toughpned diffused Glass
- High transmission 80%
- Non-Removable
- Wire Guard Powder Coated MS/SS
LED Driver
- Rated supply : 240V AC, 50/60 Hz.
- PF > 0.95, THD <10%
- Short / Open circuit protection,
- U/V, O/V protection.
Thermal management
- Silicon based TIM
- Very high conductivity
Standards Compliance
- IS 15885 ( Part 2/Sec 13)
- EN 61000-3-2, Harmonics Current
- EN 61000-3-3, Voltage Fluctuations, Flicker
- EN 61000-4-5, Surge Immunity
- EN 61547, EMC
Mounting
- Pendent – Eye Bolt ( Default ).
- Pendent C – Clamp ( Optional ).
Weight & Cable entry
- Weight – 3.0 Kg.
- Cable entry – M20, 2 Nos
- Easy Installation.

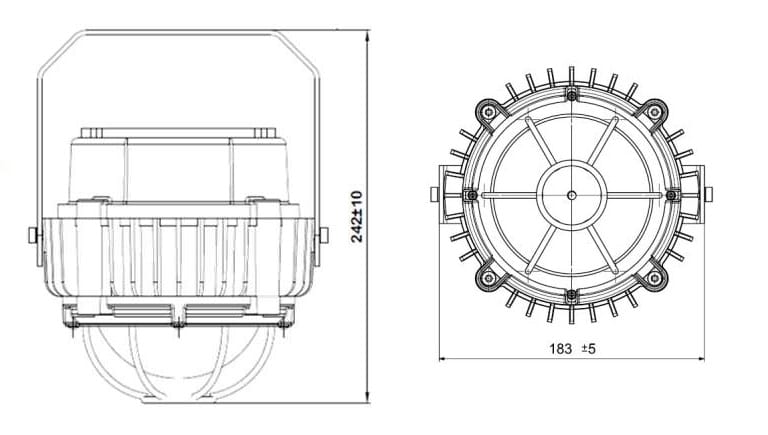

Front view
Dimensions (mm)
