IFF40 Series    30W, 45W, 60W, 70W

Flameproof Flood Lights

Ex d  IIC  T6

IIC, PESO & ISI approved

IP66, IK07, Class 1

Flameproof Flood Light IFF40

Reliable Illumination for Hazardous and Demanding Industrial Environments The ILS Flameproof Flood Light IFF40 is an exclusively engineered range available from 30W to 70W, designed to deliver high-performance, reliable illumination in demanding industrial and hazardous-area applications. Combining robust construction, advanced optical performance, and flexible lighting configurations, the IFF40 is built to provide consistent illumination with minimal maintenance. The flood light features a high-transmittance borosilicate glass lens with 93% optical transmittance, ensuring efficient light transmission and excellent illumination. Multiple CCT, beam angle, and dimming options allow the lighting system to be configured according to specific application and illumination requirements. The IFF40 is manufactured with an in-house die-cast aluminium housing and integrated heat sink, providing excellent mechanical strength and thermal management.

Family Product   ->

Flameproof Flood Light IFF40 Features

  • Fire & Ignition proof.
  • Soft and comfortable light to relieve the fatigue of eyes.
  • Excellent CRI for actual colour reproduction.
  • Energy saving efficiency and low heat produce.
  •  AL die-cast housing for excellent heat management.
  • Quick installation, special design,
  • Highly reliable professional design.

Applications

  • Chemical Industry, Paint Industry,
  • Fertilizer Industry, Oil & Gas Industry,
  • LPG Bottling Industry, Pharma Industry,
  • Steel Industry, Cement Industry,
  • Open cast mines,
  • Refineries & Petrochemicals

Characteristics

Optics

  • Borosilicate Glass Lense
  • High transmission 93%
  • Non-Removable


LED Driver

  • Rated supply : 240V AC, 50/60 Hz.
  • PF > 0.95, THD <10%
  • Short / Open circuit protection,
  • U/V, O/V protection.

Thermal management

  • Silicon based TIM
  • Very high conductivity

Standards Compliance

  • IS 15885 ( Part 2/Sec 13)
  • EN 61000-3-2, Harmonics Current
  • EN 61000-3-3, Voltage Fluctuations, Flicker
  • EN 61000-4-5, Surge Immunity
  • EN 61547, EMC

Mounting

  • Pendent – Eye Bolt ( Default ).
  • Pendent C – Clamp ( Optional ).


Weight & Cable entry

  • Weight – 3.5 Kg.
  • Cable entry – M20,  2 Nos
  • Easy Installation.

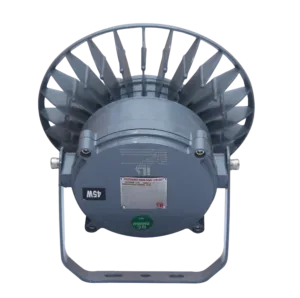

Back view

Flame proof Flood Light IFF40

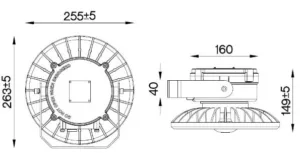

Dimensions (mm)

Dimensions (mm)
