IFS50 Series 80W, 100W, 120W, 150W
Ex d IIC T5
IIC, PESO & ISI approved
IP66, IK07, Class 1

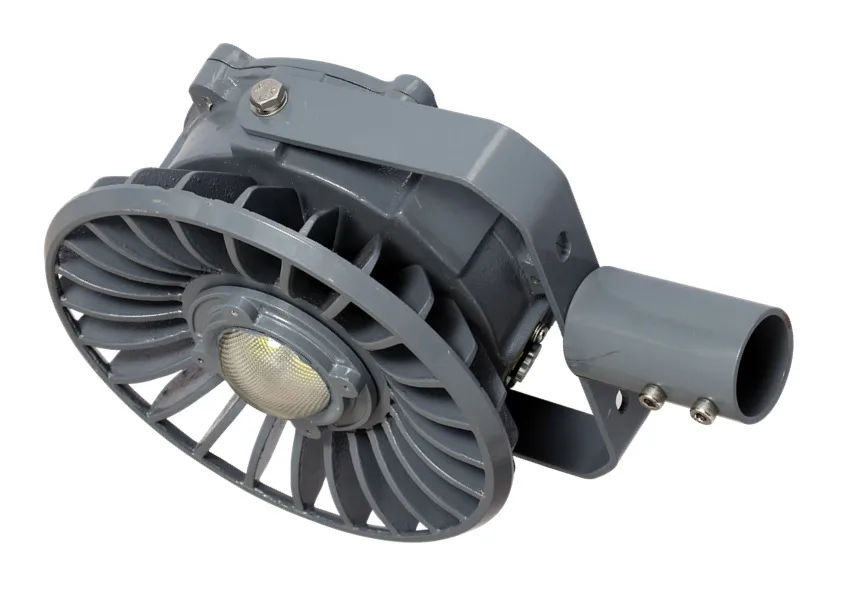

Flameproof Street Light IFS50 - new efficient design
Flameproof LED Street lights exclusively range between 80 to 150 watts. They have borosilicate glass lens with 93 percent light transmittance. It offers numerous options for CCT, beam angle and dimming. Furthermore, it offers maintenance-free operation for years! ILS flood lights are made of in-house die-casted case that are more favouable to hot weather. This is because they can use high quality metal with higher thickness of walls .
Wattage : 80W / 100W / 120W / 150W
CCT : 6500K / 5000K / 3000K
CRI : >70
Beam Angle : 60º / 90º / 120º
Input Supply : 90 ~ 305V AC, 50/60Hz, Surge >6KV in-built
Ta : -10ºC ~ 50ºC
Flameproof Street Light IFS50 Features
- Fire & Ignition proof.
- Soft and comfortable light to relieve the fatigue of eyes.
- Excellent CRI for actual colour reproduction.
- Energy saving efficiency and low heat produce.
- AL die-cast housing for excellent heat management.
- Quick installation, special design,
- Highly reliable professional design.
Applications
- Chemical Industry, Paint Industry,
- Fertilizer Industry, Oil & Gas Industry,
- LPG Bottling Industry, Pharma Industry,
- Steel Industry, Cement Industry,
- Open cast mines,
- Refineries & Petrochemicals
Characteristics
Optics
- Borosilicate Glass Lense
- High transmission 93%
- Non-Removable
LED Driver
- Rated supply : 240V AC, 50/60 Hz.
- PF > 0.95, THD <10%
- Short / Open circuit protection,
- U/V, O/V protection.
Thermal management
- Silicon based TIM
- Very high conductivity
Standards Compliance
- IS 15885 ( Part 2/Sec 13)
- EN 61000-3-2, Harmonics Current
- EN 61000-3-3, Voltage Fluctuations, Flicker
- EN 61000-4-5, Surge Immunity
- EN 61547, EMC
Mounting
- Pendent – Eye Bolt ( Default ).
- Pendent C – Clamp ( Optional ).
Weight & Cable entry
- Weight – 7.0 Kg.
- Cable entry – M20, 2 Nos
- Easy Installation.

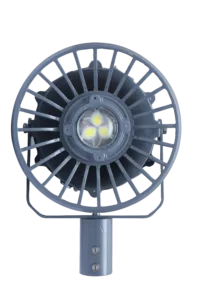

Front view

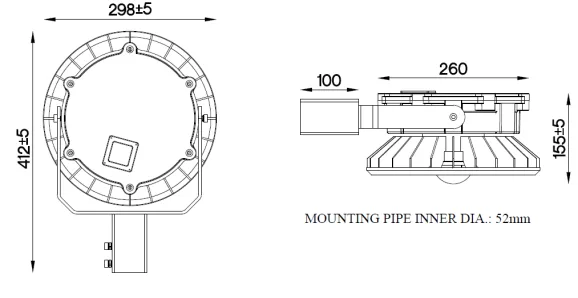

Dimensions (mm)
